Opis
• Panoramska IP IC kamera 12MP
• Pro serija
• Analitika i Heat Map funkcija
• Mikrofoni
• Zvučnik
• Audio IO
• Alarm IO
• RS485
• BNC Out
• MicroSD
• IP67
• IK10

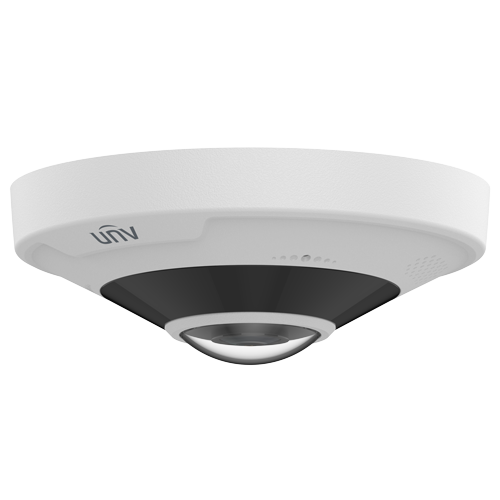

Panoramska kamera 12MP
• Pro serija
• 1/1.7” 12MP CMOS, progresivno skeniranje
• Efektivni broj piksela 4000 (H) × 3000 (V)
• Objektiv 1.8mm F2.0, vidni ugao 360°
• Osetljivost 0.03Lux/F2.0 (kolor), 0Lux sa aktivnim IC-om
• Smart IC LE diode dometa 15m
• DWDR, BLC, 2D/3D DNR, ROI (do 8 zona), Masking (do 4 zone)
• Digital defog
• Analitika - detekcija prelaska definisane linije i ulaska/izlaska u definisani region i Heat Map (uz menadžment platofrmu)
• Ultra H.265, H.265, H.264, MJPEG kompresija
• Trostruki stream
• Bitrate 128Kbps–16Mbps
• Podržane rezolucije:
• Fisheye View: 12MP(4000x3000)@20fps,3000x3000@20fps, 2560x2560@25fps
• Panorama View: 12MP(4000x3000)@20fps, 3000x2000@20/25fps, 3000x1500@20/25fps
• PTZ View: 1920x1080@20/25fps
• Hardverski dekoding:
• Montaža na plafon: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view
• Montaža na pod: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view
• Montaža na zid: fisheye view, fisheye + 4PTZ, panorama view
• Softverski dekoding:
• Montaža na plafon: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
• Montaža na pod: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
• Montaža na zid: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ
• Micro SD slot (do 256GB)
• Inkorporirana 2 mikrofona i zvulnik
• BNC izlaz
• Audio ulaz/izlaz
• Alarmni ulaz/izlaz
• Protokoli: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Interoperabilnost: ONVIF (Profile S/Profile G/Profile T), API, SDK
• Opseg radne temperature -30°C~60°C
• Dimenzije Φ149 x 55mm
• Masa 524g
• Napajanje DC 12V±25%, PoE (IEEE 802.3af), do 12W
• IP67 i IK10 sertifikovana
• Sertifikacija CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014), CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01), CE-RoHS (2011/65/EU,(EU)2015/863), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006), IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002)
