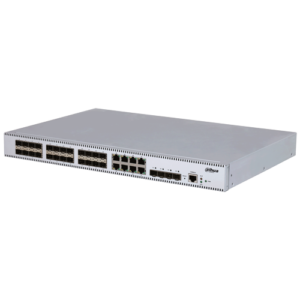

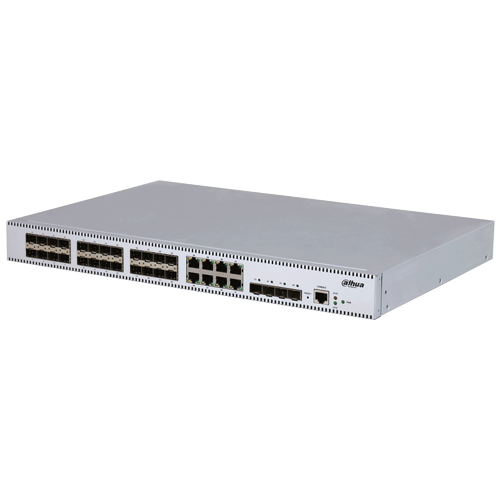

DAHUA S5436-24GF8GT4XF

L2+ Cloud upravljivi agregacioni switch sa redudantnim napajanjem

• 24x 100/1000 Mbps SFP port
• 8x 10/100/1000 Mbps RJ45 port
• 4x 1/10 Gbps SFP+
• Konzolni port
• Switching Capacity 144Gbps
• Packet forwarding rate 107.136 Mpps
• Packet buffer size 16 MBit
• MAC Table Size 32K
• VLAN number 4094
• VLAN interface 10
• Port based VLAN
• IEEE802.1Q-based VLAN konfiguracija
• Jumbo frame 12288 Bytes
• Link aggregation: LACP, Static, Dynamic
• Port feature: IEEE 802.3x, flow control, Unkonwn unicast suppression, Multicast i Broadcast storm control
• IGMP snooping
• LLDP
• Static routing
• DHCP client
• Security: 802.1X, Port isolation, Radius, HTTPS
• QoS/ACL: SP/WRR queue scheduling, 802.1p and DSCP priority mapping, Port speed limit
• Komunikacioni standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, Device Management – Cloud, Web, Telnet, SNMP V1/V2C/V3, NTP, Logs, Ping
• Reset taster
• Napajanje: 100–240 V AC x2 (redudantno)
• EMC zaštita
• Zaštita od atmosferskog pražnjenja 8kV, od kontaktnog 6kV. Zaštita od udara groma Common 4kV, Differential 2kV
• Dimenzije 3440 mm × 308.3 mm × 44.0 mm
• Neto masa 3.8kg
• Rek montaža
